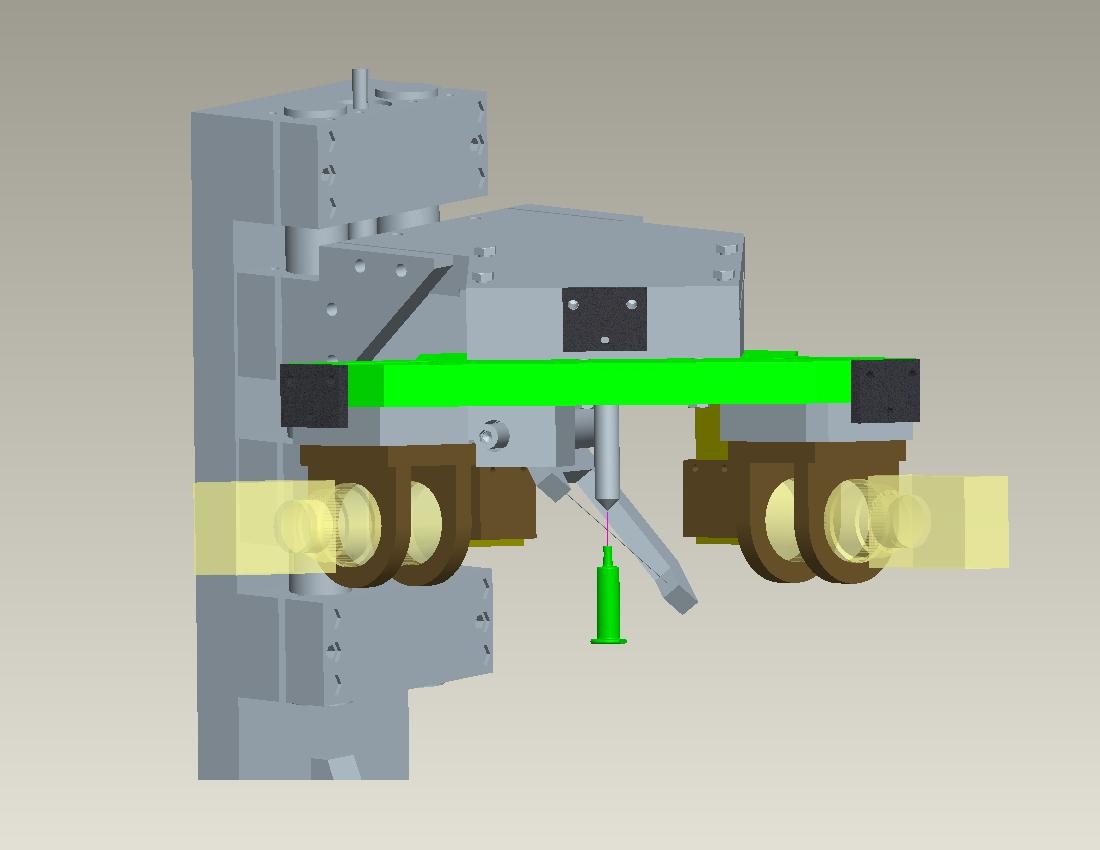

This camera station guarantees perfect needles from automatic assembly machines.

Elkav_pic 1 Elkav_pic 2 Elkav_pic 3 Elkav_pic 4

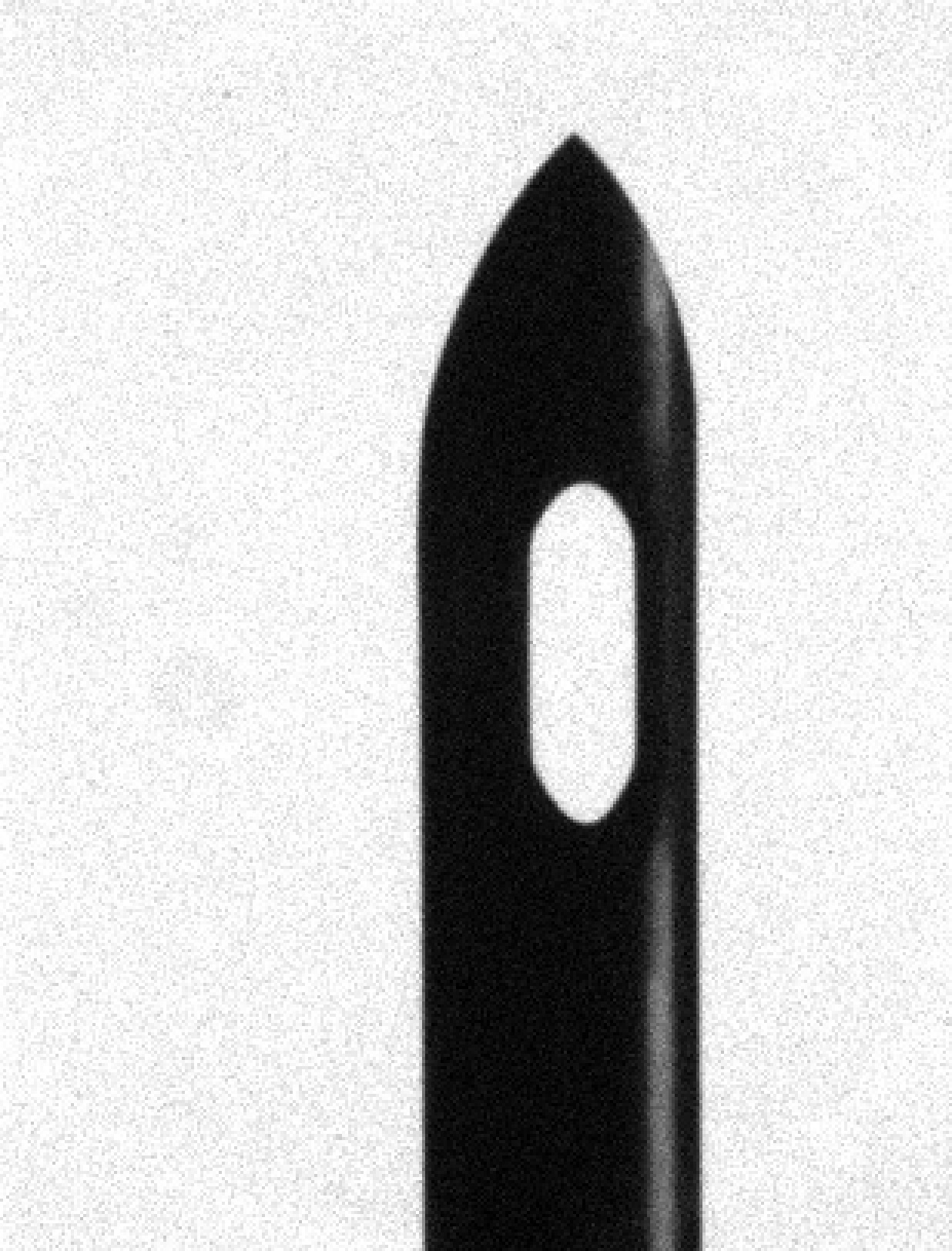

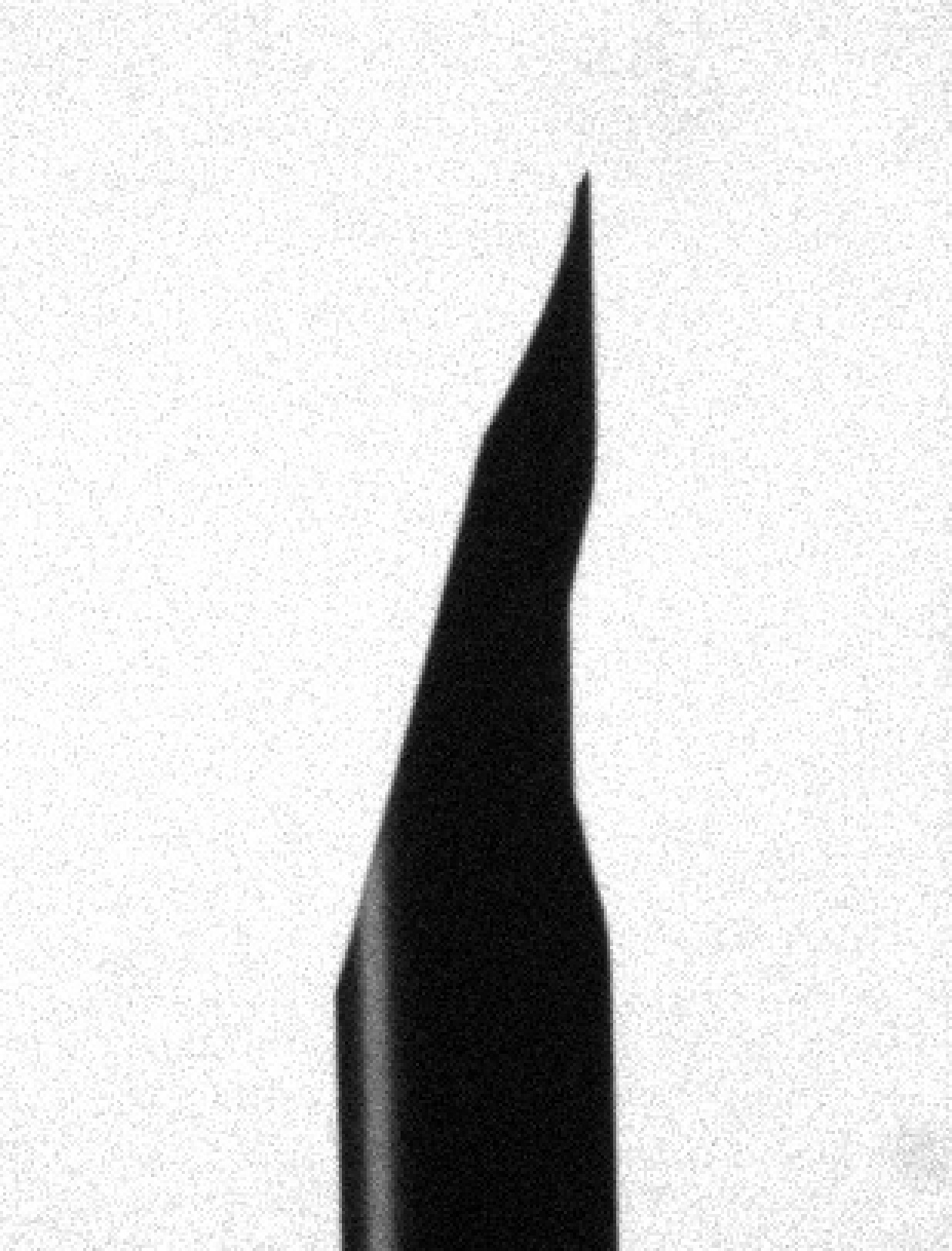

Detects: Blunt or bent tips, Hooks, Bent needles, Tip height
Options: Rotary position, Rotary Alignment


High resolution cameras and telecentric lenses allow the detection of tip defects as small as 25 microns. By the use of precision triggering and ultra short light strobes the needles are checked in motion. So a single camera station checks multiple tracks on the machine. Special care is taken to ensure correlation of the results with the tracks.
Our camera technology is under constant development and the methods and components are always state of the art. Today's top performance is 4 checks per second. As technology is improving, so are we.
